Customer Name 客戶名稱 |
||||
|
Customer Project/ Project No. 客戶項目名稱/項目編號 |
||||
|
Product Name 產品名稱 |

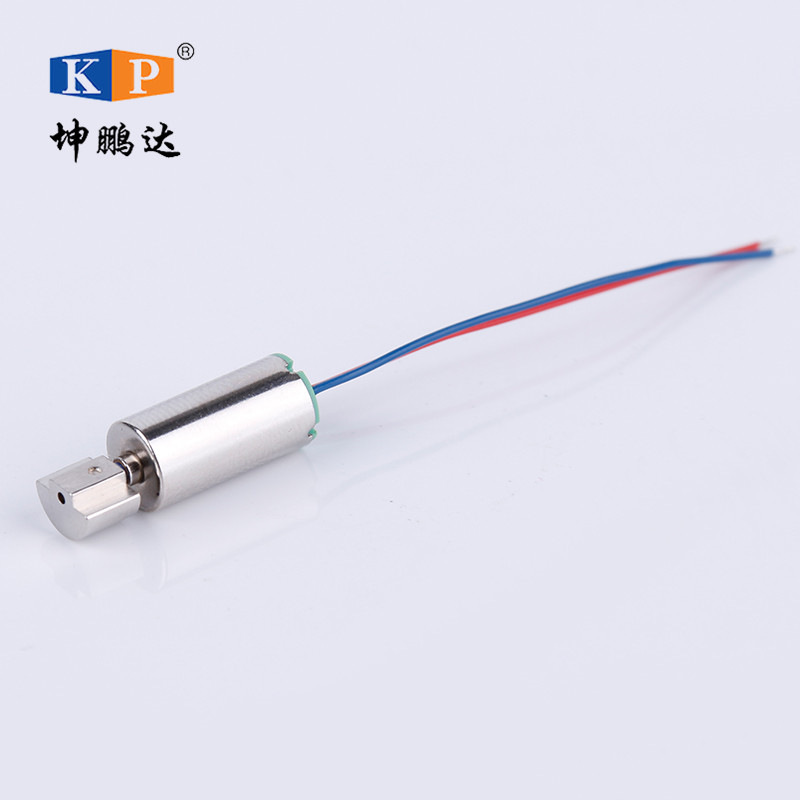

空心杯振動電機 | |||
|
Part No. 產品型號 |
KPD6C-0612 | |||
|
File Number 文件編號 |
KPD-20160909A1M-01 | |||
|
REV. 版 次 |
A/1 | |||
|
Product meet the requirements of ROHS 產品符合 ROHS 要求 |
||||
|
Customer Approved 客戶確認 |
Checking 核 對 |
Inspection 審 查 |
Approval 批 準 |
Date 日期 |
|
RF Approved 本公司確認 |
Drawing 編 制 |
Checking 審 核 |
Approval 批 準 |
Date 日期 |
| 劉華 | 代小麗 | 楊廣 | 2016-9-10 | |

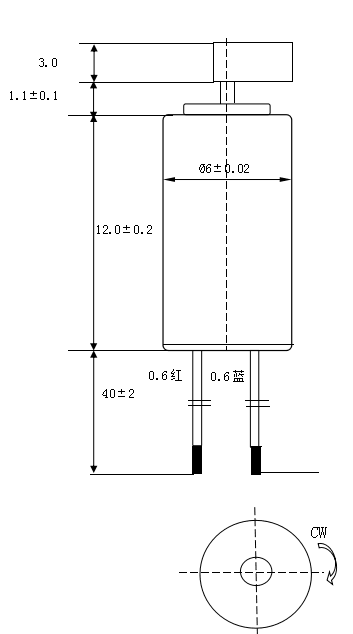

| MODEL型號： | KPD6C-0612 | ||||
| 1.使用條件/Operating condition | |||||
| 項目/Item | 規格/Specification | 條件.備注/Condition remark | |||
| 1-1 |
額定電壓 Rated voltage |
3.0V DC | |||
| 1-2 |
額定負載 Rated load |
Vibration weight 偏心輪:2.5*3 |
|||
| 1-3 |
額定轉速 Rated speed |
13500±10%RPM | |||
|
1-4 |
旋轉方向 Rotation |
CW(clockwise) | |||
| 1-5 |
馬達位置 Motor position |
全方位 All position |
|||
| 1-6 |
使用電壓范圍 Operation voltage |
1.0~6.0V DC | |||
| 1-7 |
使用環境 Operating environment |
-30~80°C，Ordinary Humidity |
無水氣凝結 No condensation of moisture |
||
| 1-8 |
保存環境 Storage environment |
-40~80°C, Ordinary Humidity |
無水氣凝結 No condensation of moisture |
||
| 2.測定條件/Measuring condition |
| 項目/Item | 規格/Specification | 條件.備注/Condition remark | ||
|
2-1 |
溫度 Temperature |
20±2℃ | ||
|
2-2 |
濕度 Humidity |
（63%~67%）RH | ||
|
2-3 |
位置 Motor position |
軸向水平 Motor shaft horizontal |
將馬達固定在試驗臺上 Lock the motor in a test fixture |
|
| 3.性能特征/Performance and characteristics | ||||
| 項目/Item | 規格/Specification | 條件.備注/Condition remark | ||
| 3-1 |
額定轉速 Rated speed |
13500±10%RPM |
在額定電壓和額定負載（振子）下。 AT rated voltage and rated load (vibration weight) |
|
| 3-2 |
額定電流 Rated current |
40MA | ||
| 3-3 |
堵轉電流 Stall current |
100MA |
在額定電壓下 At rated voltage |
|
|
3-4 |
啟動電壓 Starting voltage |
1.0V |
At rated load (vibration weight) Any position of rotor. |
|
| 3-5 |
絕緣電阻 Insulation resistance |
20MΩ |
在100V直流下，導線和機殼間 At dc 100V between lead wire and case |
|
| 3-6 |
端子阻抗 Terminal resistance |
30Ω |
在20℃下 At 20℃ |
|
| 3-7 | 導線 | 紅藍線40mm | ||
| 4.使用時注意事項/Matters to be paid attention to when using motor | ||||
|
4-1 電機在運輸過程中應小心輕放，避免碰撞敲擊引起的電機身和性能受損。 （Please lay the motors carefully in transportation to avoid any damage to the motor body or electric function because of collision .） 4-2 馬達應避免高溫放置，防潮、化學腐蝕，存儲時間不超過6個月。 (Please don’t leave the motors in the environment of high temperature, high humidity and gas that will cause rust and corrosion. Please don’t store the motors for over 6 months.) 4-3 接電后不要經常性堵住機軸。 (Please don’t lock the motor shaft when the electric power is supplied.) 4-4 包裝用吸塑盤包裝，200個為一盤，然后紙箱封裝。  |
||||
